Team Plus Wheel Turtle Club – Tyre temp sensor

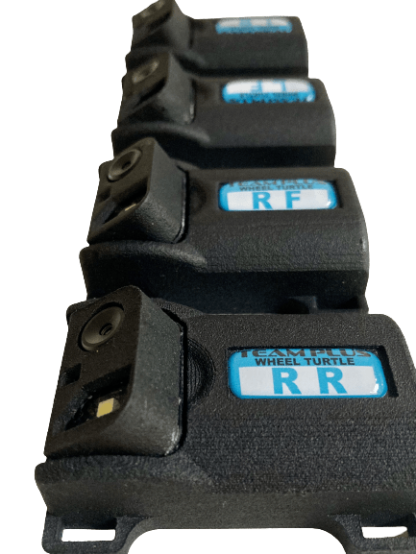

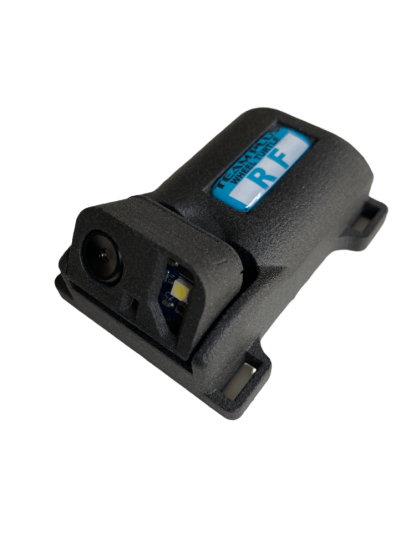

Description The Team Plus® WHEEL TURTLE® CLUB is an innovative sensor module designed to mount in a wheel arch.  Each WHEEL TURTLE® CLUB collects data on 8 Temperature points across the face of each tyre, plus distance to wheel for suspension movement and tyre colour RGB values. These values are sent via Bluetooth Low Energy and can be Viewed live on Team Plus® TELDASH® phone app Logged and/or remote viewed using TELEDASH® phone app Integrated to your CANbus Dash or Logger using the  Team Plus® CANGate. The new CLUB model is an evolution of our original Wheel Turtle WT1, with updates based on customer feedback and new technology availability while still retaining the popular turtle shape and flexibility for no wiring installation. The CLUB model features: Adjustable head moving around 80 degrees to allow extra mounting position options. Internal battery for easy WIRELESS install and movement between vehicles USB-C port for charging and software updates. Power Switch for battery management 59 x 46 x 20mm (head flat) or 59 x 46 x 27mm (head raised) and only 35 grams including battery. 110 degree field of vision. Description The Team Plus® WHEEL TURTLE® CLUB Tyre Temperature System is a set of 4 innovative battery powered wireless sensor modules to mount in each wheel arch sending: 8 Temperatures across the face of each tyre distance to wheel for suspension movement tyre colour RGB values. The new CLUB model is an evolution of our original Wheel Turtle WT1, with updates based on customer feedback and new technology availability while still retaining the popular turtle shape and flexibility for no wiring installation. The updates in the 2024 Wheel Turtle CLUB sets include: Updated power on/off switch with better feel and durability Updated enclosure design with new Screw to tighten and hold the movable head position. Updated enclosure material now using Carbon Fibre infused Nylon for extra strength. Updated waterproofing technology. USB-C port for updates and charging replacing the old micro USB Updated main board with new faster processor, and lower power use requirements for improved battery life. Tyre temperature data is critical for driver improvement, using the data to learn to warm tyres correctly and keeping them in the best traction window for races and qualifying.  The data collected by The Team Plus® WHEEL TURTLE® it is critical for Engineers, to help setup wheel and tyre settings, highlighting excess heat on inside or outside of tyre and peak temperatures during a session live or by recorded data. The WHEEL TURTLE® streams LIVE to the Team Plus® TELDASH® smart phone app.  From the app you can:  Read temperatures in C or F on each tyre in graphical format View colour coded temperatures with configurable thresholds for Blue (cold), Green (ideal),  Orange (warning), and Red (over temp) Record peak(max) temperatures for each of the 32 temperatures, for easy review after drive. Watch live Thermal Image for any tyre View location and Motion Data Record and playback your on track session data on the phone Live stream to friends or teammates Save and send recordings to another device The CLUB model features: Adjustable head moving around 80 degrees to allow extra mounting position options. Internal battery for easy install and movement between vehicles USB-C port for charging and software updates. Power Switch for battery management 59 x 46 x 20mm (head flat) or 59 x 46 x 27mm (head raised) and only 35 grams including battery. 110 degree field of vision. The wheel data is sent via Bluetooth Low Energy (BLE) at around 10 times per second and can be: Viewed live on Team Plus® TELDASH® phone app Logged and/or remote viewed using TELEDASH® phone app Integrated to your CANbus Dash or Logger uning the  Team Plus® CANGate. Similar hard wired tyre temp sensors sell for more than $5,000 and are not easily usable on multiple cars. The WHEEL TURTLE® CLUB can also be used on your street car and your phone app to provide additional data to car enthusiasts about the condition and treatment of their road going vehicle. Set of 4 Wheel Turtles includes: 4 Wheel Turtles 1 Carry Case 4 x USB charging cables 4 Standard Wheel Turtle CLUB Mount Brackets. Quick Start Card with QR Code to Instruction Guides. Wheel Turtle® CLUB CANGate Bundle includes: Set of 4 Wheel Turtle® CLUB Tyre Temp Sensors 4 Wheel Turtle® Mounting Brackets 4 USB-C charge cables 4 External Team Plus® Track Grade TPMS Pressure Sensors Team Plus® CANGate CANHub 4 Port 90cm (3ft) Cable from CANGate to 4 wire (12V, Ground, CAN H, CAN L) Carry Case CANgate only includes: Team Plus® CANGate® Wheel Turtle Mounting bracket only includes: Single (1) Wheel Turtle Mounting Bracket CANGate Included in the Wheel Turtle CAN bundle Connect your Wheel Turtles to your existing CANbus setup via the Team Plus CANGate for Wheel Turtle. CANGate for Wheel Turtle connects to the Wheel Turtles over Bluetooth and then passes the data onto your CANbus, so it is available to any CAN based dash or logger or ECU. The CANGate set up is ideal for cars with existing or planned CANbus based race dash or loggers, so all the data is integrated together and analysis is fine in your existing tools. Features of the CANGate for Wheel Turtle include: – Integration with your chosen CANbus capable loggers and dash. – Tyre temp(8 per wheel), tyre colour and tyre distance (8-10 Hz) – One Glance Tyre temp visualisations for driver using the 3.5” touch screen on CANGate as a secondary display. –  Display tyre temperature data on your existing race dash when integrated with CANbus – Data Logging and analysis via your existing data logger when integrated with CANbus – Wheel Turtle configuration and calibration management available on the Teledash iPhone app. – CANGate on-screen tick box options to set CANbus speed, with more details settings available using the Teledash iPhone app. – Publicly available CANbus protocol and dbc file for easy configuration into your dash or logger. The CANGate for Wheel Turtle set up is ideal for cars with existing or planned CANbus based race dash or loggers, so all the data is integrated together and analysis is fine in your existing tools. Please note: logger or dash must allow for custom external CAN channels. Custom Solutions We can customise these Wheel Turtles for: Different Mounting Positions and options Hard wired power versions removing battery narrower field of view for kart or motorbike versions (normally 120 degrees for wider tyres, but 60 degree version available. Colour and Team Brand names. Contact us for more information!
