Team Plus Wheel Turtle PRO – Tyre temp sensor

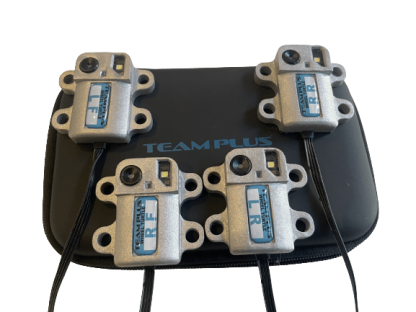

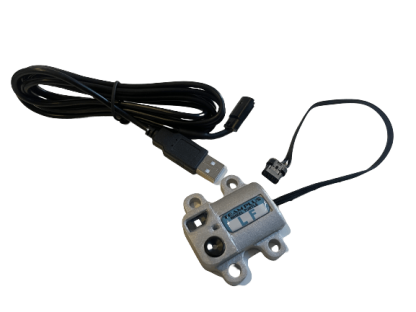

Description The Team Plus™ WHEEL TURTLE™ PRO is an innovative sensor module designed to mount in a wheel arch.  Each WHEEL TURTLE™ collects data on 8 Temperature points across the face of each tyre, plus distance to wheel for suspension movement and tyre colour RGB values. These values are sent via Bluetooth and can be Viewed live on Team Plus™ TELDASH™ phone app Logged and/or remote viewed using TELEDASH phone app or  Team Plus™ TELELOGGER™ Integrated to your CANbus Dash or Logger uning the  Team Plus™ CANGate. The WT PRO model features: Temps per tire/tyre: 8 Distance and  RGB Color/Colour Update Rate: 15Hz Case: Alloy Power Source: Hard Wired 12V Sensor Head: Fixed Dimensions: mm 47(L) x 50(W) x 13(H) Description The Team Plus™ WHEEL TURTLE™ Pro Tyre Temperature System is a set of 4 innovative sensor modules to mount in each wheel arch sending: 8 Temperatures across the face of each tyre distance to wheel for suspension movement tyre colour RGB values. 15Hz update rate over bluetooth Tyre temperature data is critical for driver improvement, using the data to learn to warm tyres correctly and keeping them in the best traction window for races and qualifying.  The data collected by The Team Plus™ WHEEL TURTLES™ it is critical for Engineers, to help setup wheel and tyre settings, highlighting excess heat on inside or outside of tyre and peak temperatures during a session live or by recorded data. The WHEEL TURTLE™ stream LIVE to the Team Plus™ TELDASH™ smart phone app.  From the app you can:  Read temperatures in C or F on each tyre in graphical format View colour coded temperatures with configurable thresholds for Blue (cold), Green (ideal),  Orange (warning), and Red (over temp) Record peak(max) temperatures for each of the 32 temperatures, for easy review after drive. Watch live Thermal Image for any tyre View location and Motion Data Record your on track session data on the phone Live stream to friends or teammates Save and send recordings to another device The WT PRO model features: Tough Aluminium enclosure sealed unit. Hardwired Power cable with supplied wiring kit. 47mm(L) x 50mm(W) x 13mm(H) 110 degree field of vision. The wheel data is sent via Bluetooth 4 at around 10 times per second and can be: Viewed live on Team Plus™ TELDASH™ phone app Logged and/or remote viewed using TELEDASH phone app or  Team Plus™ TELELOGGER™ Integrated to your CANbus Dash or Logger uning the  Team Plus™ CANGate. Set of 4 Wheel Turtle PROs includes: 4 Wheel Turtles 1 Carry Case 4 x cables to connect to USB outlet 2 x 12V to dual USB power adapters (one for front and one for back of car) Quick Start Card with QR Code to Instruction Guides. Wheel Turtle® PRO CANGate® Bundle includes: Set of 4 Wheel Turtle® PRO Tyre Temp Sensors Wiring Kit with USB cables and 12v-USB adapters for Wheel Turtle® power Set of 4 External Team Plus® Track Grade TPMS Pressure sensors Team Plus® CANGate® Team Plus® CANHub 4 Port 90cm (3ft) Cable from CANGate to 4 wire (12V, Ground, CAN H, CAN L) CANgate only includes: Team Plus® CANGate® CANGate Included in the Wheel Turtle PRO CANGate bundle Connect your Wheel Turtles to your existing CANbus setup via the Team Plus CANGate for Wheel Turtle. CANGate for Wheel Turtle connects to the Wheel Turtles over Bluetooth and then passes the data onto your CANbus, so it is available to any CAN based dash or logger or ECU. The CANGate set up is ideal for cars with existing or planned CANbus based race dash or loggers, so all the data is integrated together and analysis is fine in your existing tools. Features of the CANGate for Wheel Turtle include: – Integration with your chosen CANbus capable loggers and dash. – Tyre temp(8 per wheel), tyre colour and tyre distance (8-10 Hz) – One Glance Tyre temp visualisations for driver using the 3.5” touch screen on CANGate as a secondary display. –  Display tyre temperature data on your existing race dash when integrated with CANbus – Data Logging and analysis via your existing data logger when integrated with CANbus – Wheel Turtle configuration and calibration management available on the Teledash iPhone app. – CANGate on-screen tick box options to set CANbus speed, with more details settings available using the Teledash iPhone app. – Publicly available CANbus protocol and dbc file for easy configuration into your dash or logger. The CANGate for Wheel Turtle set up is ideal for cars with existing or planned CANbus based race dash or loggers, so all the data is integrated together and analysis is fine in your existing tools. Please note: logger or dash must allow for custom external CAN channels. Custom Solutions We can customise these Wheel Turtles for: Different Mounting Positions and options Hard wired power versions removing battery narrower field of view for kart or motorbike versions (normally 120 degrees for wider tyres, but 60 degree version available. Colour and Team Brand names. Contact us for more information!
