HellermannTyton Straight Heat Shrink Boots

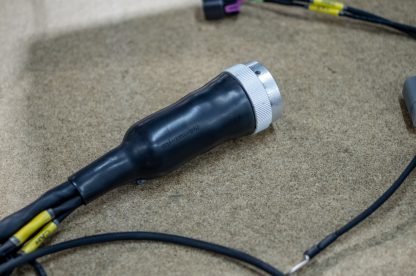

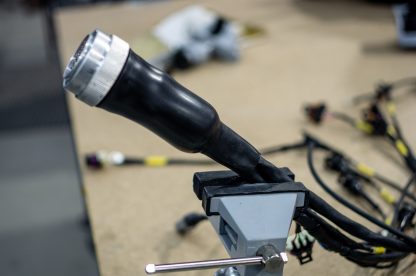

Description Product Specifications: Adhesive: W24 (Epoxy Adhesive) or W8 (Hot Melt Adhesive) Min. Shrink Temperature: °C 135 °C Operating Temperature:  -75 °C to 150 °C Material: Polyolefin, cross-linked Colour: Black   We currently have the following boots available, the W24 or W8 at the end refers to the adhesive type, and the first 5 numbers refer to the sizing, which can be cross-referenced on the table below: H-158-43-G-W24 (this is what we use for Deutsch 47 way bulkhead connectors) If you are after a different sized boot let us know and we can generally order them in. Product Part Numbers and Dimensions: Currently available sizes are marked in bold Part Number (H) Big End (J) Small End P (± 10%) R (± 10%) UN SHRUNK SHRUNK UN SHRUNK SHRUNK Total Length Length 152-41 24mm [0.94″] 10.5mm [0.41″] 24mm [0.94″] 6mm [0.23″] 26mm [1.01″] 9mm [0.35″] 152-42 24mm [0.94″] 10.5mm [0.41″] 24mm [0.94″] 6mm [0.23″] 38mm [1.48″] 21mm [0.82″] 153-41 25mm [0.98″] 14mm [0.55″] 9mm [0.35″] 3.5mm [0.14″] 40mm [1.56″] 13mm [0.51″] 153-42 25mm [0.98″] 14mm [0.55″] 9mm [0.35″] 3.5mm [0.14″] 55mm [2.15″] 28mm [1.09″] 154-41 30mm [1.18″] 14mm [0.55″] 30mm [1.18″] 6mm [0.23″] 43mm [1.69″] 20mm [0.78″] 154-42 30mm [1.18″] 14mm [0.55″] 30mm [1.18″] 6mm [0.23″] 55mm [2.15″] 32mm [1.25″] 155-41 31mm [1.22″] 18mm [0.71″] 31mm [1.22″] 7mm [0.27″] 47mm [1.83″] 15mm [0.59″] 155-42 31mm [1.22″] 18mm [0.71″] 31mm [1.22″] 7mm [0.27″] 67mm [2.61″] 35mm [1.38″] 156-41 36mm [1.42″] 22.5mm [0.89″] 36mm [1.42″] 8.5mm [0.33″] 60mm [2.36″] 22mm [0.86″] 156-42 36mm [1.42″] 22.5mm [0.89″] 36mm [1.42″] 8.5mm [0.33″] 80mm [3.12″] 42mm [1.64″] 157-42 43mm [1.69″] 28mm [1.09″] 43mm [1.69″] 10mm [0.39″] 79mm [3.08″] 41mm [1.6″] 157-43 43mm [1.69″] 28mm [1.09″] 43mm [1.69″] 10mm [0.39″] 99mm [3.86″] 61mm [2.38″] 158-41 60mm [2.36″] 35mm [1.38″] 60mm [2.36″] 16mm [0.62″] 90mm [3.51″] 32mm [1.25″] 158-43 60mm [2.36″] 35mm [1.38″] 60mm [2.36″] 16mm [0.62″] 130mm [5.07″] 72mm [2.81″] 159-41 66mm [2.57″] 45mm [1.76″] 66mm [2.57″] 17mm [0.66″] 130mm [5.07″] 50mm [1.95″] 159-42 66mm [2.57″] 45mm [1.76″] 66mm [2.57″] 17mm [0.66″] 150mm [5.85″] 70mm [2.81″] 159-43 66mm [2.57″] 45mm [1.76″] 66mm [2.57″] 17mm [0.66″] 171mm [6.67″] 90mm [3.51″] 160-41 82mm [3.2″] 58mm [2.26″] 82mm [3.2″] 27mm [1.05″] 137mm [5.34″] 37mm [1.44″] 160-42 82mm [3.2″] 58mm [2.26″] 82mm [3.2″] 27mm [1.05″] 158mm [6.16″] 58mm [2.26″] 160-43 82mm [3.2″] 58mm [2.26″] 82mm [3.2″] 27mm [1.05″] 213mm [8.31″] 113mm [4.41″]   *Other items pictured in product photos are not included
