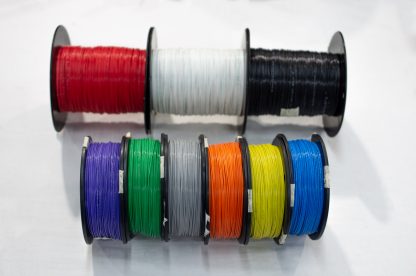

Description Milspec M22759/32 Tefzel (ETFE) insulated wire. Tefzel wire offers a small diameter conductor with enhanced mechanical toughness and resistant to harsh chemicals such as fuels, oils and other automotive fluids. Temperature Rating: -55 to 150 degrees C Tin plated copper conductor Extruded ETFE Sheathing These lightweight wires, developed for high temperature airframe and avionics, utilize an insulation of cross-linked, modified ethylene tetrafluoreothylene copolymer (ETFE). The result is a wire insulation system that offers a 150°C temperature rating, small size, light weight, with resistance to high PH cleaning fluids, fuels, lubricating oils, and many other chemicals. These wires are a mechanically tough, flame retardant, and weight saving solution. The ultimate in wiring for your project. Wire Size Use Case Current Rating (When Bundled) Tefzel Wire Size (mm²) Tefzel Diameter(mm) Including Insulation 24AWG Sensor wiring 4A 0.31 0.94 22AWG Sensor wiring, small injectors, coil triggers, relay triggers 6A 0.49 1.09 20AWG Sensor wiring, injectors, engine actuators (VVT solenoids etc), coil triggers, and lights (30w) 8A 0.77 1.27 18AWG Small fans, pumps, coil pack power, motors (wiper/window), and lights (55w) 11A 1.21 1.52 16AWG Fans, transfer/vacuum pumps, and lights (100w) 16A 1.53 1.73 14AWG Medium duty fuel pumps, and small radiator fans 17A 2.41 2.16 12AWG Heavy duty fuel pumps (excluding Walbro 525), and large radiator fans 21A 4.01 2.62 10AWG Power distribution, Walbro 525 Pumps, and electric power steering pumps 28A 6.47 3.25
