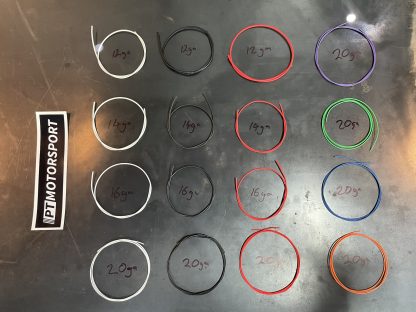

Spec 44 Wire – Hook up Wire – M81044/12

Description Trade Pricing on 100m Spools available, add multiples of 100m to cart for this pricing. Trade quantity orders may incur a delay in shipping. Spec 44 wire has a dual wall construction which combines the outstanding physical and electrical characteristics of radiation crosslinked polyalkene with the excellent mechanical and chemical properties of radiation cross-linked polyvinylidene fluoride (PVDF). The result is a wire insulation system that offers a 150°C temperature rating, small size, light weight, solder iron resistance, and resistance to most solvents, fuels and lubricants. Spec 44 wire and cable is highly flame retardant, non-melting, does not cold flow, and though mechanically very tough, is easy to handle and install using conventional tools. Originally developed for aerospace and military requirements in applications of high density and complex circuitry, Spec 44 wire and cable now finds wide use throughout industry, in commercial and military electronics, avionics, on satellites, aircraft, helicopters, ships, trains, and offshore platforms where environmental conditions demand consistently reliable performance. Wire Size Use Case Current Rating (When Bundled) Spec 44 Wire Size (mm²) Spec 44 Diameter(mm) Including Insulation 24AWG Sensor wiring 4A 0.31 1.01 22AWG Sensor wiring, small injectors, coil triggers, relay triggers 6A 0.49 1.19 20AWG Sensor wiring, injectors, engine actuators (VVT solenoids etc), coil triggers, and lights (30w) 8A 0.77 1.39 18AWG Small fans, pumps, coil pack power, motors (wiper/window), and lights (55w) 11A 1.21 1.65 16AWG Fans, transfer/vacuum pumps, and lights (100w) 16A 1.53 1.83 14AWG Medium duty fuel pumps, and small radiator fans 17A 2.41 2.26 12AWG Heavy duty fuel pumps (excluding Walbro 525), and large radiator fans 21A 4.01 2.74 10AWG Power distribution, Walbro 525 Pumps, and electric power steering pumps 28A 6.47 3.28
