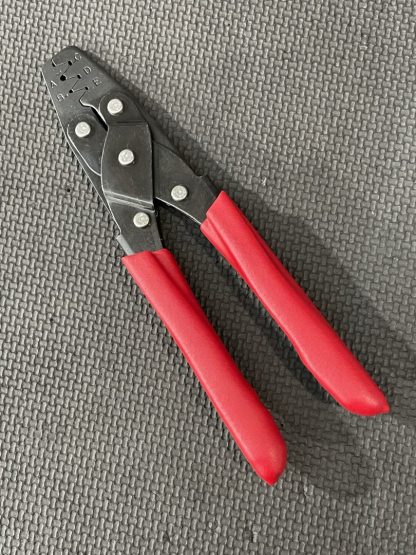

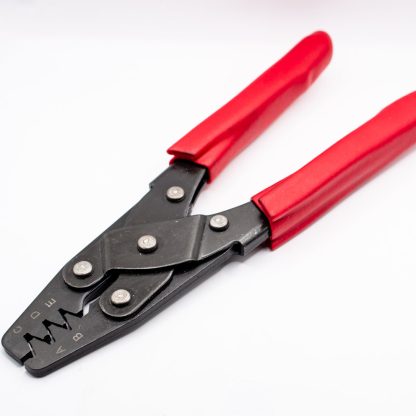

Sargent 1026CT – Open Barrel Terminal General Purpose Crimp Tool

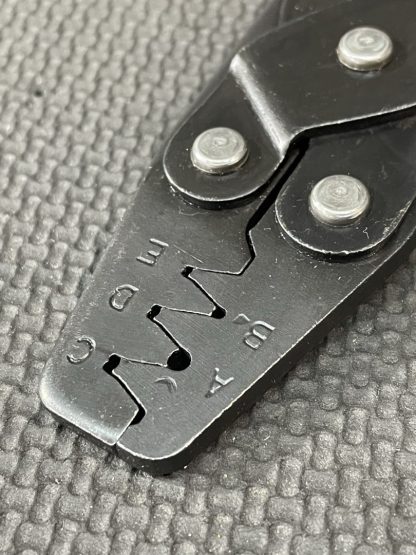

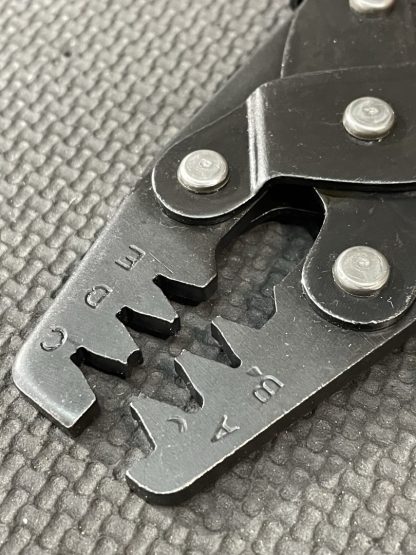

Crimps a wide variety of open barrel contacts, including D-sub-miniature in small size wire ranges. Crimps conductor and seal portion of contacts in separate cavities. Tool must be closed twice to complete termination. Seal crimps are produced in two cavities: A 20-16 AWG and B 30-22 AWG. “B” type conductor crimps are produce in three cavities: C 18-16 AWG, D 22-20 AWG and E 30-24 AWG. Classic design for reliable use Made in USA
