HellermannTyton Right Angle Heat Shrink Boots

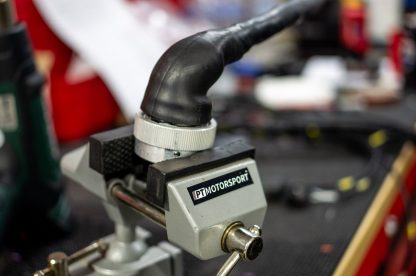

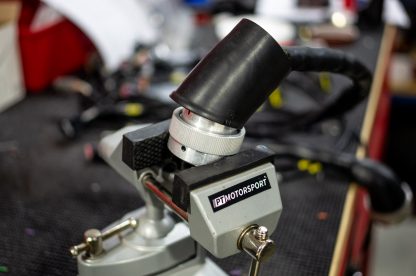

Description Product Specifications: Adhesive: W24 (Epoxy Adhesive) or W8 (Hot Melt Adhesive) Min. Shrink Temperature: °C 135 °C Operating Temperature:  -75 °C to 150 °C Material: Polyolefin, cross-linked Colour: Black   We currently have the following boots available, the W24 or W8 at the end refers to the adhesive type, and the first 5 numbers refer to the sizing, which can be cross-referenced on the table below: H-1152-4-G-W24 H-1154-4-G-W24 H-1155-4-G-W8 H-1155-4-G-W24 H-1156-4-G-W24 H-1157-4-G-W24 (this is what we use for Deutsch 47 way bulkhead connectors) H-1156-4-G-W8 H-1157-4-G-W8 H-1158-4-G-W24 Product Part Numbers and Dimensions: Currently available sizes are marked in bold Part Number (H) Big End ( J) Small End P M UN SHRUNK SHRUNK UN SHRUNK SHRUNK Total Length Height to Centreline 1152-4 24mm [0.94″] 10.5mm [0.41″] 24mm [0.94″] 6mm [0.24″] 32mm [1.26″] 19mm [0.75″] 1152-6 24mm [0.94″] 10.5mm [0.41″] 14mm [0.55″] 6mm [0.24″] 32mm [1.26″] 19mm [0.75″] 1152-7 30mm [1.18″] 10.5mm [0.41″] 30mm [1.18″] 6mm [0.24″] 32mm [1.26″] 19mm [0.75″] 1152-50 24mm [0.94″] 10.5mm [0.41″] 12mm [0.47″] 6mm [0.24″] 32mm [1.26″] 19mm [0.75″] 1154-4 30mm [1.18″] 14.5mm [0.57″] 30mm [1.18″] 6mm [0.24″] 41mm [1.61″] 20mm [0.79″] 1154-6 30mm [1.18″] 14.5mm [0.57″] 15mm [0.59″] 6mm [0.24″] 41mm [1.61″] 20mm [0.79″] 1154-12 18mm [0.71″] 14.5mm [0.57″] 12mm [0.47″] 6mm [0.24″] 41mm [1.61″] 20mm [0.79″] 1154-50 24mm [0.94″] 14.5mm [0.57″] 12mm [0.47″] 6mm [0.24″] 41mm [1.61″] 20mm [0.79″] 1154-51 30mm [1.18″] 14.5mm [0.57″] 15mm [0.59″] 6mm [0.24″] 41mm [1.61″] 20mm [0.79″] 1155-4 31mm [1.22″] 18mm [0.71″] 31mm [1.22″] 7mm [0.28″] 51mm [2.01″] 21mm [0.83″] 1155-6 31mm [1.22″] 18mm [0.71″] 18mm [0.71″] 7mm [0.28″] 51mm [2.01″] 21mm [0.83″] 1155-9 35mm [1.38″] 18mm [0.71″] 35mm [1.38″] 7mm [0.28″] 51mm [2.01″] 21mm [0.83″] 1155-50 28mm [1.10″] 18mm [0.71″] 14mm [0.55″] 7mm [0.28″] 51mm [2.01″] 21mm [0.83″] 1156-4 36mm [1.42″] 22.5mm [0.89″] 36mm [1.42″] 8.5mm [0.33″] 59mm [2.32″] 26mm [1.02″] 1156-6 36mm [1.42″] 22.5mm [0.89″] 21mm [0.83″] 8.5mm [0.33″] 59mm [2.32″] 26mm [1.02″] 1156-50 34mm [1.34″] 22.5mm [0.89″] 17mm [0.67″] 8.5mm [0.33″] 59mm [2.32″] 26mm [1.02″] 1156-52 34mm [1.34″] 22.5mm [0.89″] 17mm [0.67″] 8.5mm [0.33″] 59mm [2.32″] 26mm [1.02″] 1157-1 43mm [1.69″] 28.5mm [1.12″] 25mm [0.98″] 10mm [0.39″] 71mm [2.80″] 30mm [1.18″] 1157-4 43mm [1.69″] 28.5mm [1.12″] 43mm [1.69″] 10mm [0.39″] 71mm [2.80″] 30mm [1.18″] 1157-6 43mm [1.69″] 28.5mm [1.12″] 25mm [0.98″] 10mm [0.39″] 71mm [2.80″] 30mm [1.18″] 1158-4 60mm [2.36″] 35mm [1.38″] 60mm [2.36″] 16mm [0.63″] 101mm [3.98″] 35mm [1.38″] 1158-5 62mm [2.44″] 35mm [1.38″] 32mm [1.26″] 16mm [0.63″] 101mm [3.98″] 35mm [1.38″] 1158-6 60mm [2.36″] 35mm [1.38″] 39mm [1.54″] 16mm [0.63″] 101mm [3.98″] 35mm [1.38″]   *Other items pictured in product photos are not included
